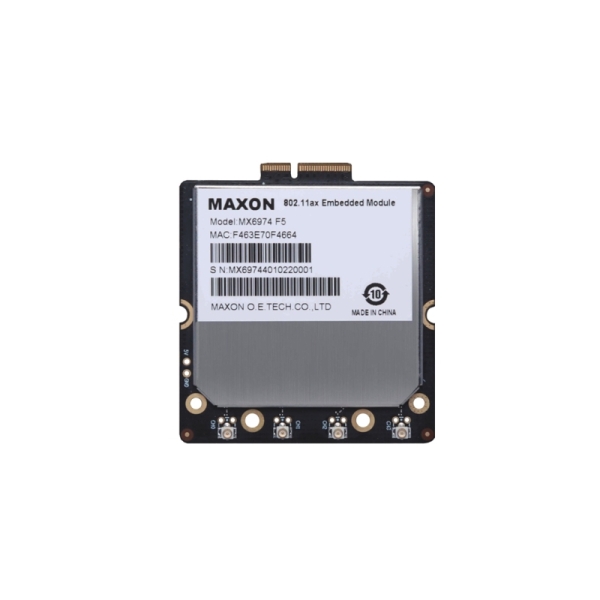

MX-6974 F5 高通QCN9074/4x4?MIMO/5GHz/PCI Express3.0/802.11ax/WIFI6模塊

碼訊MX6974 F5是一款配有PCI Express 3.0接口及M.2 E-key的嵌入式WiFi6無線網卡。該無線網卡采用Qualcomm? 802.11ax Wi-Fi 6技術，支持5180-5850GHz頻段，可執行AP及STA功能。

規格書聯系碼訊申請樣機

產品概述

碼訊MX6974 F5是一款配有PCI Express 3.0接口及M.2 E-key的嵌入式WiFi6無線網卡。該無線網卡采用Qualcomm? 802.11ax Wi-Fi 6技術，支持5180-5850GHz頻段，可執行AP及STA功能，同時具備4x4 MIMO和4個空間流，適用于5GHz IEEE802.11a/n/ac/ax應用，相比上一代無線網卡的傳輸效率更高，并具備動態頻率選擇(DFS)功能。

產品規格

產品類型	WiFi6無線模塊
芯片	QCN9074
IEEE 標準	IEEE 802.11ax
接口	PCI Express 3.0，M.2 E-key
工作電壓	3.3V/5V
頻率范圍	5G：5.180GHz~5.850GHz
調制技術	802.11n：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ac：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM） 802.11ax：OFDMA （BPSK，QPSK，DBPSK，DQPSK，16-QAM，64-QAM， 256-QAM，1024-QAM，4096-QAM）
輸出功率（單通道）	802.11ax：Max. 21dBm
功耗	≦15W
接收靈敏度	11ax： HE20 MCS0 <-89dBm / MCS11 <-64dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-58dBm
天線接口	4 x U. FL
工作環境	溫度：-20°C to 70°C 濕度：95% （無冷凝）
存儲環境	溫度：-40°C to 90°C 濕度：90% （無冷凝）
認證	RoHS/REACH
重量	20 克
*尺寸（WHD)*	60 x 57 x 4.2 mm （偏差±0.1mm）

射頻參數

	速率	發射功率（單通道）	公差	接收靈敏度	公差
802.11a	6Mbps	21dBm	±2dB	-91dBm	±2dB
	9Mbps	21dBm	±2dB	---	±2dB
	12Mbps	21dBm	±2dB	---	±2dB
	18Mbps	21dBm	±2dB	---	±2dB
	24Mbps	20dBm	±2dB	---	±2dB
	36Mbps	20dBm	±2dB	---	±2dB
	48Mbps	17dBm	±2dB	---	±2dB
	54Mbps	17dBm	±2dB	-74dBm	±2dB
802.11n/ac VHT20	MCS0	21dBm	±2dB	-91dBm	±2dB
	MCS1	21dBm	±2dB	---	±2dB
	MCS2	21dBm	±2dB	---	±2dB
	MCS3	21dBm	±2dB	---	±2dB
	MCS4	20dBm	±2dB	---	±2dB
	MCS5	20dBm	±2dB	---	±2dB
	MCS6	17dBm	±2dB	---	±2dB
	MCS7	17dBm	±2dB	-74dBm	±2dB
	MCS8	17dBm	±2dB	---	±2dB
	MCS9	17dBm	±2dB	-67dBm	±2dB
802.11n/ac VHT40	MCS0	21dBm	±2dB	-89dBm	±2dB
	MCS1	21dBm	±2dB	---	±2dB
	MCS2	21dBm	±2dB	---	±2dB
	MCS3	21dBm	±2dB	---	±2dB
	MCS4	20dBm	±2dB	---	±2dB
	MCS5	20dBm	±2dB	---	±2dB
	MCS6	17dBm	±2dB	---	±2dB
	MCS7	17dBm	±2dB	-71dBm	±2dB
	MCS8	17dBm	±2dB	---	±2dB
	MCS9	17dBm	±2dB	-65dBm	±2dB
802.11ac VHT80	MCS0	21dBm	±2dB	-86dBm	±2dB
	MCS1	21dBm	±2dB	---	±2dB
	MCS2	21dBm	±2dB	---	±2dB
	MCS3	21dBm	±2dB	---	±2dB
	MCS4	20dBm	±2dB	---	±2dB
	MCS5	20dBm	±2dB	---	±2dB
	MCS6	17dBm	±2dB	---	±2dB
	MCS7	17dBm	±2dB	---	±2dB
	MCS8	17dBm	±2dB	---	±2dB
	MCS9	17dBm	±2dB	-61dBm	±2dB
802.11ac VHT160	MCS0	19dBm	±2dB	---	±2dB
	MCS1	19dBm	±2dB	---	±2dB
	MCS2	19dBm	±2dB	---	±2dB
	MCS3	19dBm	±2dB	---	±2dB
	MCS4	18dBm	±2dB	---	±2dB
	MCS5	18dBm	±2dB	---	±2dB
	MCS6	15dBm	±2dB	---	±2dB
	MCS7	15dBm	±2dB	---	±2dB
	MCS8	15dBm	±2dB	---	±2dB
	MCS9	15dBm	±2dB	---	±2dB
802.11ax HE20	MCS0	21dBm	±2dB	-89dBm	±2dB
	MCS1	21dBm	±2dB	---	±2dB
	MCS2	21dBm	±2dB	---	±2dB
	MCS3	21dBm	±2dB	---	±2dB
	MCS4	20dBm	±2dB	---	±2dB
	MCS5	20dBm	±2dB	---	±2dB
	MCS6	17dBm	±2dB	---	±2dB
	MCS7	17dBm	±2dB	---	±2dB
	MCS8	17dBm	±2dB	---	±2dB
	MCS9	17dBm	±2dB	---	±2dB
	MCS10	16dBm	±2dB	---	±2dB
	MCS11	16dBm	±2dB	-64dBm	±2dB
	MCS12	10dBm	±2dB	---	±2dB
	MCS13	10dBm	±2dB	---	±2dB
802.11ax HE40	MCS0	21dBm	±2dB	-89dBm	±2dB
	MCS1	21dBm	±2dB	---	±2dB
	MCS2	21dBm	±2dB	---	±2dB
	MCS3	21dBm	±2dB	---	±2dB
	MCS4	20dBm	±2dB	---	±2dB
	MCS5	20dBm	±2dB	---	±2dB
	MCS6	17dBm	±2dB	---	±2dB
	MCS7	17dBm	±2dB	---	±2dB
	MCS8	17dBm	±2dB	---	±2dB
	MCS9	17dBm	±2dB	---	±2dB
	MCS10	16dBm	±2dB	---	±2dB
	MCS11	16dBm	±2dB	-60dBm	±2dB
	MCS12	10dBm	±2dB	---	±2dB
	MCS13	10dBm	±2dB	---	±2dB
802.11ax HE80	MCS0	21dBm	±2dB	-86dBm	±2dB
	MCS1	21dBm	±2dB	---	±2dB
	MCS2	21dBm	±2dB	---	±2dB
	MCS3	21dBm	±2dB	---	±2dB
	MCS4	20dBm	±2dB	---	±2dB
	MCS5	20dBm	±2dB	---	±2dB
	MCS6	17dBm	±2dB	---	±2dB
	MCS7	17dBm	±2dB	---	±2dB
	MCS8	17dBm	±2dB	---	±2dB
	MCS9	17dBm	±2dB	---	±2dB
	MCS10	16dBm	±2dB	---	±2dB
	MCS11	16dBm	±2dB	-58dBm	±2dB
	MCS12	10dBm	±2dB	---	±2dB
	MCS13	10dBm	±2dB	---	±2dB
802.11ax HE160	MCS0	19dBm	±2dB	---	±2dB
	MCS1	19dBm	±2dB	---	±2dB
	MCS2	19dBm	±2dB	---	±2dB
	MCS3	19dBm	±2dB	---	±2dB
	MCS4	18dBm	±2dB	---	±2dB
	MCS5	18dBm	±2dB	---	±2dB
	MCS6	15dBm	±2dB	---	±2dB
	MCS7	15dBm	±2dB	---	±2dB
	MCS8	15dBm	±2dB	---	±2dB
	MCS9	15dBm	±2dB	---	±2dB
	MCS10	14dBm	±2dB	---	±2dB
	MCS11	14dBm	±2dB	---	±2dB
	MCS12	7dBm	±2dB	---	±2dB
	MCS13	7dBm	±2dB	---	±2dB
